您所在的位置:企資網>優質產品>機械及行業設備>涂裝設備>噴槍>特威噴槍AGMDPro自動噴槍油漆高霧化噴槍

深圳市立揚科技有限公司

五金制品、五金工具、氣動工具、噴涂設備、電子產品、塑膠產品的研發與銷售;國內貿易,貨物及技術進出口。

企業會員

企業會員

特威噴槍AGMDPro自動噴槍油漆高霧化噴槍

產品價格1.00元/把

產品品牌特威AGMDPro

最小起訂≥1 把

供貨總量500 把

瀏覽次數240

企業旺鋪http://surerisetech.48903.com/

更新日期2021-09-06 21:43

收藏產品 掃一掃 舉報

誠信檔案

深圳市立揚科技有限公司

會員級別:企業會員

身份認證:

我的勛章: [誠信檔案]

在線客服:

企業二維碼: 企業名稱加二維碼 深圳市立揚科技有限公司

企業名片

深圳市立揚科技有限公司

聯 系  人:孫先生(先生) 經理

電子郵箱:47586327@qq.com

聯系手機:13823127806

聯系固話:0769-86009786

聯系地址:深圳市寶安區福永街道龍騰閣新村4巷9號402F

【友情提示】:來電請說明在企資網看到我們的,謝謝!

商品信息

基本參數

品牌:

特威AGMDPro

所在地:

廣東

起訂:

≥1 把

供貨總量:

500 把

有效期至:

2047-08-24

品牌:

特威AGMDPro

類型:

油漆槍

規格:

1.0
詳細說明

Our engineers have taken

acknowledged leading atomization

technology and enhanced the market

leading AGMD Automatic gun to

produce the “AGMD PRO”.

Now incorporating LVMP Compliant

SPRAY performance with results to

match and exceed that of the traditional

air caps used today. This new platform

of Automatic gun technology has the

ability to improve Transfer Efficiency

while also providing reduced air

consumption.

Improved maintenance and

serviceability comes as standard from

the AGMD PRO which is vital for the

high demand finishing industries.

A choice of three new high performance

air caps are available ensuring the

AGMD PRO gun is the ultimate choice

for industrial finish quality.

The new design AGMD PRO features

a simple quick detach gun head which

provides reduced production downtime

allowing servicing exchange for

maintenance in seconds. The improved

internal fluid passages facilitate

efficient color change and flushing

cycles required by Class A finishes.

The AGMD PRO gun can be configured

for standard machine mount

applications or upon adapters and hose

bundles suitable for most common

painting robots.

DeVilbiss LVMP Compliant Atomization Technology

“Pro” high performance front end technology with removable/replaceable baffle

and air cap retaining threads

New radial clamping device with quick release cam operation from either side of

gun – compact and convenient

Fast cylinder cycle at lower air pressures

Same “Tool Center Point” as original AGMD model

Certified air caps with indexing facility

Plastic tip needle on St/St seat for increased life

Suitable for waterborn and solvent base coatings

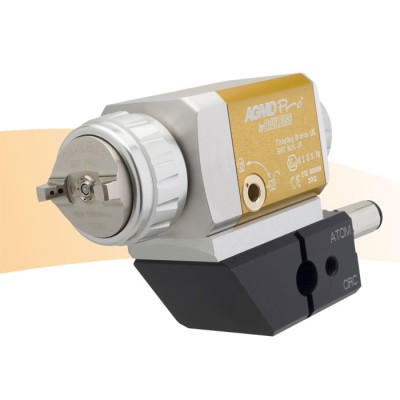

DEVILBISS AGMD PRO

Automatic spray gun

The DeVilbiss AGMD Pro Automatic spray gun delivers optimal atomization

quality and the best performance in its class.

finishingbrands

Part Number example:

AGMDPRO-0000-YYP

Gun Tip and Needle

finishingbrands

email: marketing@finishingbrands

A54-125 10-13

DEVILBISS AGMD PRO Automatic spray gun

§ Fluid path with low pressure drop and smooth passageways.

§ More efficient color change.

§ Radial clamping device for positive sealing and reduced risk

of O-ring damage.

§ No exposed clamping mechanism.

§ Air cap indexing without fluid nozzle removal.

§ Air cap retaining ring with integral seals as standard.

§ Large piston with fast trigger cycles.

§ Full trigger stroke at reduced air pressure.

§ Easy maintenance with fewer critical gun body components.

§ Fluid needle removable from rear of gun without complete

disassembly.

Air cap type and air consumption

TE30 High Efficiency Air Cap: 12.9 cfm (365 l/min) @ 30 psi (2.0 bar)

TE40 High Efficiency Air Cap: 12.4 cfm (350 l/min) @ 30 psi (2.0 bar)

TE50 High Efficiency Air Cap: 15.0 cfm (425 l/min) @ 30 psi (2.0 bar)

Specification

Size – (W x H x D) 1.8" x 2.17" x 4.88" (46mm x 55mm x 124mm)

Weight – Gun Head only 22.79 oz. (646 grams)

Fan Air – Max Pressure 75 psi (12 bar)

Atomizing Air – Max Pressure 75 psi (12 bar)

Fluid Inlet – Fluid Pressure 215 psi (max) (15 bar max)

Cylinder Air – Max Pressure 90 psi (6 bar)

Cylinder Air – Min Pressure 60 psi (3.5 bar)

Gun Head – Material Stainless Steel

Fluid Nozzle – Material Stainless Steel

Air Cap – Material Plated Brass

Fluid Needle – Material Stainless Steel (with Plastic Tip)

For more technical information refer to the AGMD PRO Service Bulletin SB-2-991.
